ZW absorb dredge pump

product class:Self-sucking pump series

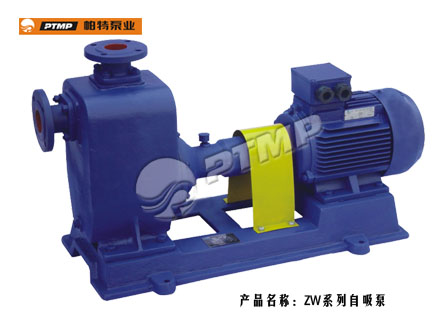

product name:ZW absorb dredge pump

Performance data	Range of capacity	1.8~1450m³/h
	Range of head	≤133m
	Medium temperature	-10℃~120℃
	Ambient temperature	Up to 40℃
	Maximum working pressure	suction pressure+head of pump≤1.6MPa
Motor data	Supporting power
	Voltage	380V
	Frequency	50HZ
	Rotating speed	2900r/min,1450r/min,970r/min
	Protection class	IP44/IP54
	Insulation class	B/F
Material	pump body , pump cover,impeller	cast iron
	Pump shaft	45 steel /stainless stell 3Crl3
	Mechanical seal	silicon carbide,graphite,tungsten carbide,hard alloy and etc.

overview
feature
purpose
Model significance
Show case
data behavioral
Application area

   ZW serial self-priming and non-block sewage pump is a new structure product which is developed on base of reaping study of domestic and foreign similar technology.
    Pump of this kind has features of simple structure, good self-priming performance, high sewage capability, high efficiency and energy saving, convenient usage and maintenance etc compared with domestic similar product, and it belongs to the first creation in the country at sewage pump series. All technology and performance indexes are on top of the nation, reach the international advanced level, so it has the wide application market and developing future.

   Urrounding temperature ≦50℃,medium temperature ≦80℃, it can reach 200℃ under special requirement;
    Medium consistency should not exceed 1240kg/m
    Self-priming height should not exceed the stated number of 4.5～5.5m,and the suction pipe should not be over 10 meters long;
    It can pass the suspended grain whose diameter is 60 percent of pump caliber, and the fibrin which is 5 times long of pump caliber.

This kind of pump combines self-priming and non-block, adopts axial circumfluence out-mix type. And through the particular design of case, impeller channel, it not only needn’t to be fixed with base valve and poured in water like normal self-priming pump, but also can suck and discharge liquid containing big grain and long fibrin substance. So it is widely used in municipal sewage project, river and pond breeding, light Industry, paper making, weaving, foodstuff, chemical industry, power industry, fibrin, slurry and mixed suspension etc chemical medium.

100ZW80-20PB100-Inlet diameter(mm )
ZW-Self-priming and non-block sewage pump
80-Rated capacity(m³/h)
20-Rated head(m)
P-Staionless steel material(non-mark means cast iron)(304、305、306、307、316、316L)
B-Explosion protection motor (non mark means common motor)
